MICROPIX

Slide Scanners

Desktop system. Low volume. 2 and 20-slide capacity versions.	Professional. High throughput. 5 to 400 slide capacity models.

Mikroscan

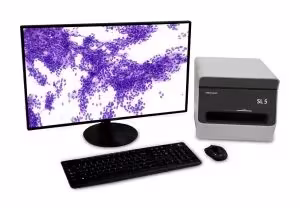

We are pleased to distribute the latest slide scanner from Mikroscan – the SL5. This is a simple, easy-to-use and affordable slide scanner and / or remote controlled microscope system that will work immediately in any lab.

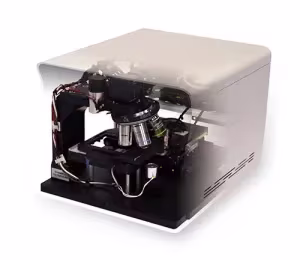

Described as a “microscope in a box”, the SL5 uses the highest quality 2x, 4x, 10x, 20x and 40x objective lenses combined with optimised LED illumination for the highest image quality. It has 2 modes – Robotic Microscope, L5 and Full Whole Slide Scanning (WSI) – SL5.

The system has been designed to hold one or two standard slides (25mm x 75mm) or utilising a new 20 slide, auto-loader – the SL5-20.

Robotic Microscope – L5

• Use the L5’s live robotic microscope to examine a tissue specimen on the glass slide, not a digitized representation.

• Frozen sections, cytology preparations, fine needle aspirations and other time-critical specimen evaluations occur instantly.

• Control magnification, movement in x and y, fine and coarse focus and illumination in real-time – meaning that you choose the planes of focus and areas of interest, not the system.

• One-click capture of images (and annotate them) for future reference.

Whole Slide Scanning (WSI) – SL5

• Full digital pathology capability.

• Scan speed of 45 seconds for 15mm x 15mm at 20x.

• Acquire multiple regions of interest.

• Smallest and lightest instrument on the market at 11″W (28cm) x 9″H (23cm) x 14″D (36cm) /32 lbs (14.5kg)

• 5 objectives, no digital interpolation.

• Non-proprietary TIFF image format so supports all kinds of image analysis software.

KF Bio

We are proud to now offer the full range of slide scanners from KFBIO – a Chinese manufacturer who’s products are used to scan over 5 million slides per year.

Please click on the product image to open the KFBIO website product page (opens in a new window).

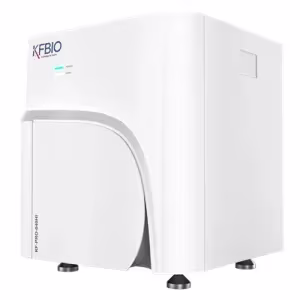

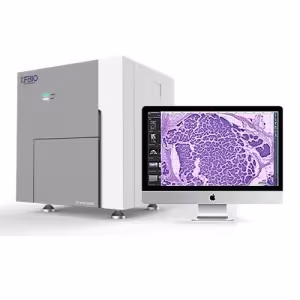

KF-PRO-005 5 Slide Scanner. Fast, Precise, Efficient. Brightfield and Fluorescence. Clinical, Research, Education, Remote Consultation. Supports Mega / Jumbo Slides	KF-PRO-020 Digital pathology 20 Slide Scanner (PRO). Fast, Precise, Efficient. Brightfield and Fluorescence. Clinical, Research, Education, Remote Consultation.	KF-PRO-040 Digital pathology 40 Slide Scanner (PRO). Fast, Precise, Efficient. Brightfield and Fluorescence. Clinical, Research, Education, Remote Consultation.

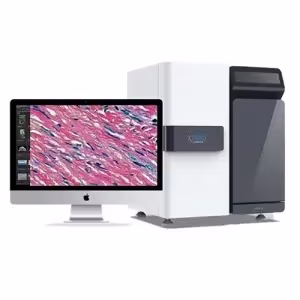

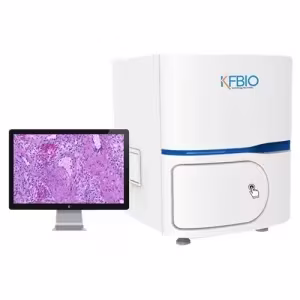

KF-PRO-120 Digital pathology 120 Slide Scanner (PRO). Fast, Precise, Efficient. Brightfield and Fluorescence. Clinical, Research, Education, Remote Consultation.	KF-PRO-400 Digital pathology 400 Slide Scanner (PRO). Fast, Precise, Efficient. Brightfield and Fluorescence. Clinical, Research, Education, Remote Consultation.

Samples of digital slides can be viewed here (opens a new window): https://view.kfbiopathology.com/sample

For more information, quotes and demonstrations please contact Micropix at info@micropix.co.uk
